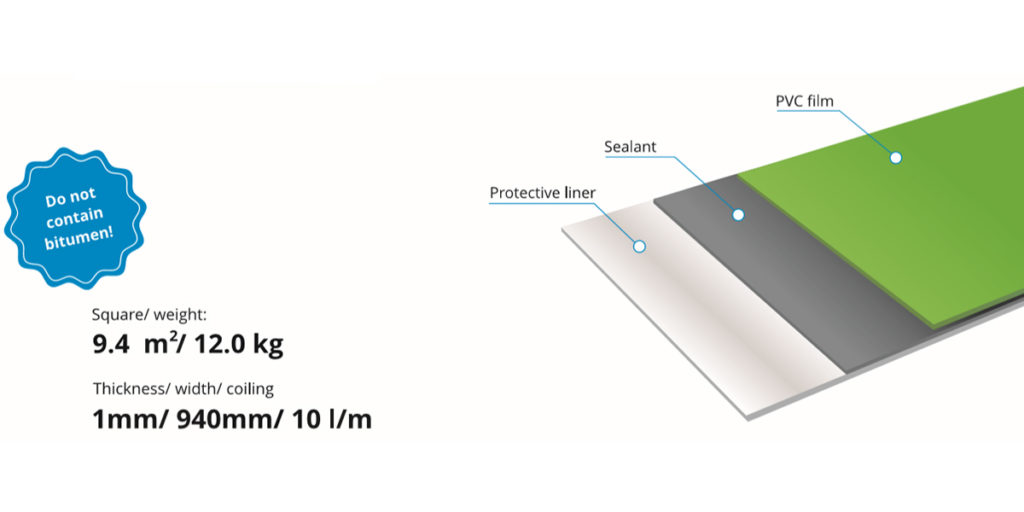

Germetex® Waterproofing LM PVC 940 – foundation waterproofing

SCOPE OF APPLICATION:

  • for external waterproofing of the foundation and blind area
  • for sealing and fixing profiled membranes
  • for sealing solid waste storages, mine dumps
  • insulation of the outer surface during the construction and repair of underground tanks and pipelines, including heating mains up to 150 ℃, in order to protect them from corrosion
  • for protection of joints, flanges, bends and transitions of pipelines by the method of single-stage application
  • to cut off the foundation from the main structure
  • waterproofing of the outer surface during the construction and repair of underground utilities
  • NG class, for interior work, not UV resistant

ADVANTAGES:

  • the material does not require additional costs (special equipment, gas burners, etc.)
  • no fire work required
  • lightweight and compact
  • it is possible to repair rusty and corrosive surfaces
  • it is not subject to rotting
  • the material withstands temperatures from -40 to +85 ℃, while maintaining its sealing properties
  • the sealant does not harden and does not leak, remaining always ready for use (even at subzero temperatures)

TECHNICAL CHARACTERISTICS OF SYNTHETIC RUBBER-BASED SEALANT:

  • Rubber-to-concrete bond strength – at least 3.0 H/cm
  • Rubber-to-metal bond strength – at least 3.0 H/cm
  • Shear bond strength – at least 2.0 H/2 mm
  • Vapor permeability resistance – at least 2.0 mg/(m2.h.Pa)
  • Flexibility on bar R 5 mm -40 ℃
  • Operating conditions- from -40 to +85 ℃
  • Water tightness – 600 Pa
  • Predicted service life – 20 years
  • installation is carried out without heating the material
  • no special equipment or skills required
  • technology eliminates fire risks
  • no special protective equipment is required during operation
