Germetex® LM F Сolor – the corrugated tape for joints

0/0
  • 1
  • 1
  • 1

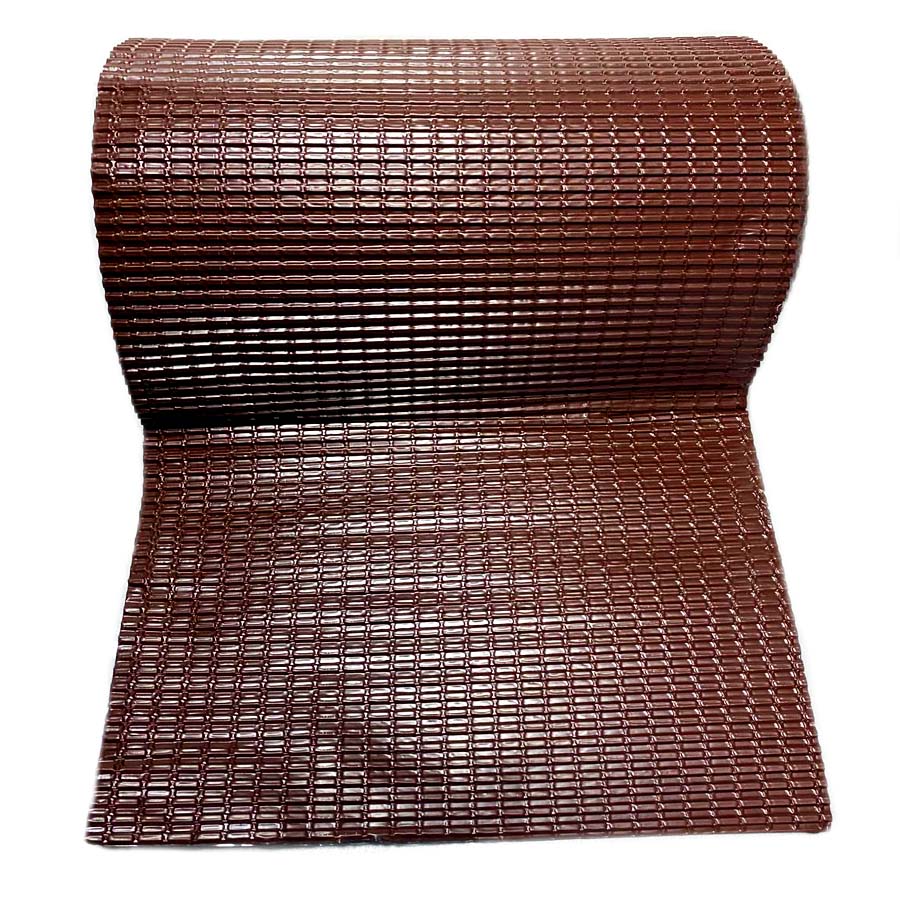

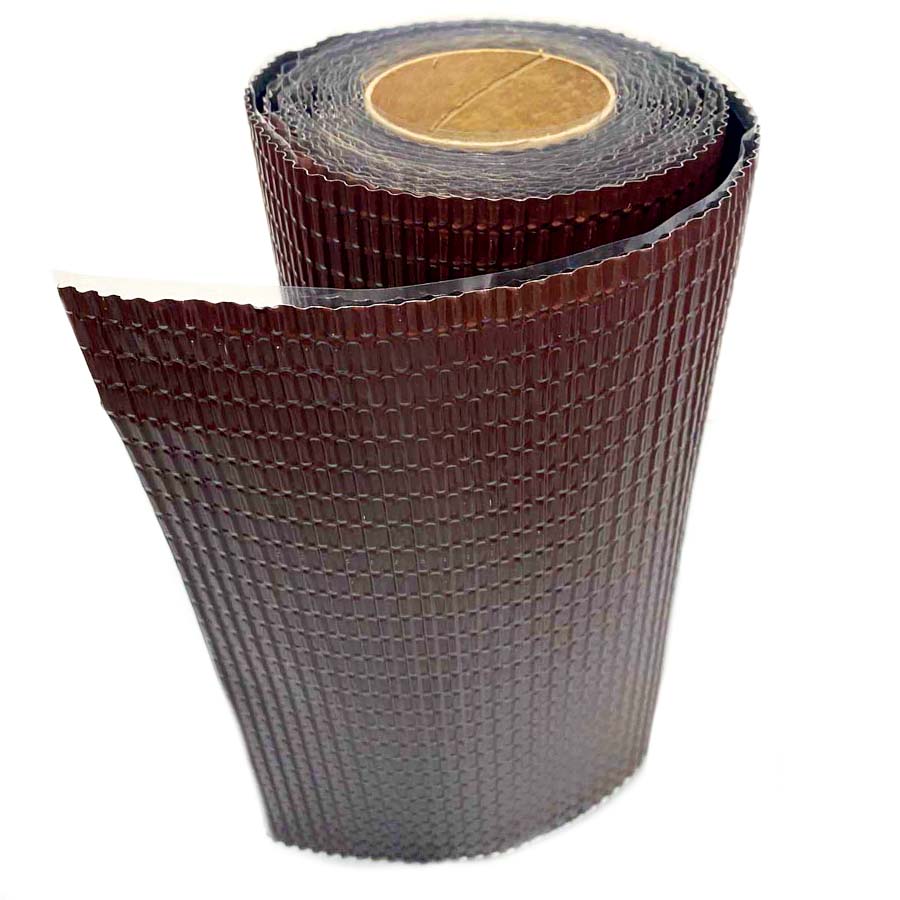

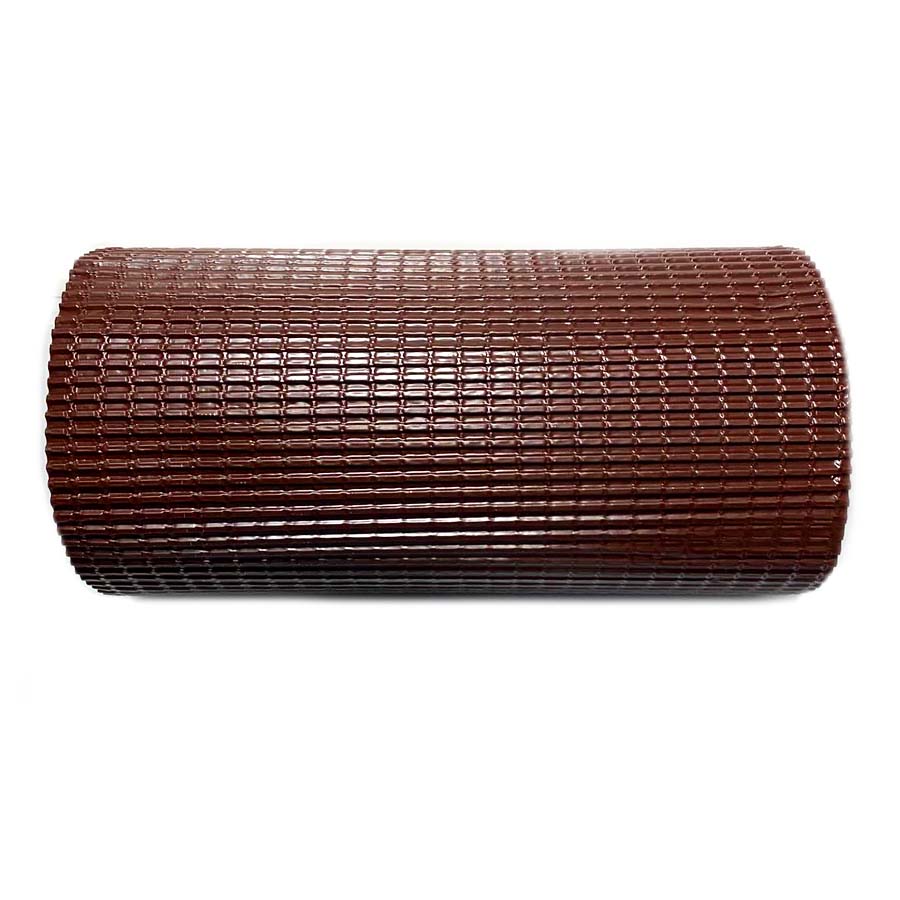

The tape is made of a butyl rubber sealant. On the outside, the material is made of thick embossed aluminum foil, painted with a reinforced paint coating composition according to the RAL catalog, resistant to UV, and reinforced with a protective layer against mechanical damage. The inner self-adhesive side of the tape has a protective liner that can be removed during installation.

Scope of application

  • for connections in the construction of chimneys and vent. systems, repair of any roofing;
  • arrangement of abutments on flat and pitched roofs;
  • for sealing the joints of the output elements;
  • sealing of seams and joints in structures made of metal, wood, plastic.

Technical specifications

  • Width: 150-300 mm
  • Length: 5-10 m
  • Colors: RAL
  • Thickness: 1.5mm
  • Water resistance 600 Pa, 72 hours: no signs of water penetration;
  • Water absorption, % not less than 0.3
  • Heat resistance 85 C, 2 hours: no bloating, streaking, peeling of the adhesive layer
  • Frost resistance (flexibility on the bar) R 5 mm at T – 40 ° C: no cracks, breaks
  • Vapor permeability resistance m2hPa/mg, not less than 2.0
