“Tape Germeteks LM l and LM l Next” – vapour barrier, heat reflecting butyl rubber

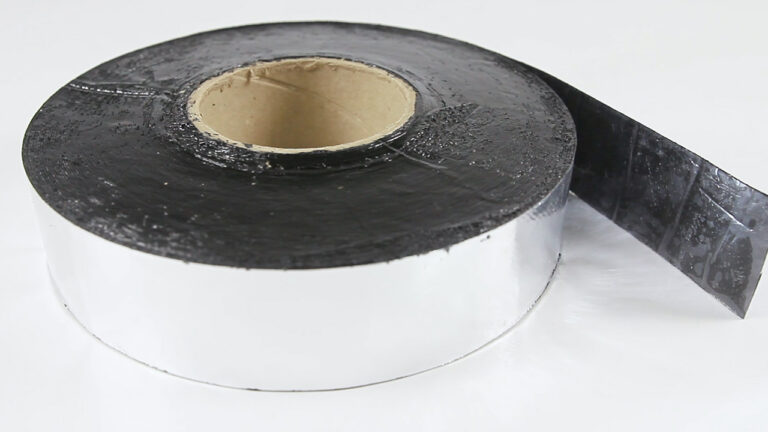

Germeteks LM l-self-adhesive vapor barrier, heat-reflecting butyl rubber tape, duplicated on one side of the metallized film.

The minimum dimension of the tape glueing on the edge of glazing is 7-10 mm. But no more than the size of the width of the outer edge (clamping strip).

Application

1. When installing translucent structures under the clamping bar (facades, anti-aircraft lights, winter gardens).
2. On connection of standing and crossbar systems, for sealing of deformation gaps.
3. Beneath the sill, as well as for sealing connections of elements of translucent structures between the seams inside the building and light steel structures (LSTC).

Brief description

Self-adhesive vapor barrier, heat-reflecting butyl rubber tape, duplicated on one side of the metallized film.

Used under the window sill to protect the mounting seams. The tape is supplied in rolls. Application of vapour barrier tape and Next LML LML provides reliable protection of the mounting foam against moistening on the room side, and thereby prevents the formation of condensation on the surface of the inner slope.
As protection from external moisture during installation of translucent structures under the clamping bar (facades, conservatories, skylights, greenhouses, etc.) For connecting mullion and transom hood, for sealing of the expansion joints.

Application of tapes ” Hermetic LM l»

Tape “Germeteks” is ready for use and does not require special tools during its installation. The surface of the base should be dry, clean, fat-free. For heavily soiled and rough surfaces it is recommended to apply a layer of primer (primer) brand BKV. It is necessary to paste a tape densely on all its length. Any gap or non-density is a place for moisture penetration. The tape must be lapped together. The tape must be cut on a flat surface. The length of the tape consists of the overall size of translucent structures with the addition of overlap tolerance. Anti-adhesive (protective) paper is removed from the tape and the tape is attached to the surface of the node requiring protection.

Coefficient of vapor permeability 0, 36×10-3 mg/(m * h·PA)
Adhesive bond strength 0,32 kgf/cm2
Minimum installation temperature-15°C
Operating temperature ot-60°C to + 100°C
Service life less than 10 years
Width of tapes, mm 10-900
Length of tapes, m 15, 24, 36
Thickness, mm 0.6, 1, 1.5, 2, 2.5

The choice of width of the tape “Germeteks LM l»

The recommended width of the tape is selected as follows:

1. The width of the mounting gap +40 mm (width of adhesive strips of tape) for installation of window and door structures.
2. The minimum size of the adhesive tape on the edge of the glass 7-10mm. But no more than the size of the width of the outer cover (mounting tape LML should not get out of the edge of the clamping bar) for the installation of facade aluminum steel systems.

Feature!!! The width of the tape mounting LML is taken by the width of the butyl layer. And on the Next LML tape width in the tape size.

Germeteks L M l, l M l Next

Germeteks LM l-self-adhesive vapor barrier, heat-reflecting butyl rubber tape, duplicated on one side of the metallized film.

The minimum size of the value of the tape on the edge of the glazing 7-10 mm. But no more than the size of the width of the outer edge (clamping strip).

Application

1. When installing translucent structures under the clamping bar (facades, anti-aircraft lights, winter gardens).
2. On connection of standing and crossbar systems, for sealing of deformation gaps.
3. under the sill to seal the connections of elements of translucent structures between the seams inside the building and light steel structures (LSTC).

Germeteks LM l Next-three-layer tape additionally duplicated fiberglass or polypropylene fabric, which gives stability and stability of the product.

Germeteks LM l used in conjunction with Germeteks LM of, Germeteks LM d, LM Germeteks Alum.

Technical characteristics

Width: from 3 mn to 900 mm.
Thickness: 0.6 mm to 3 mm.
Shelf life: 12 months.
