«Acoustics» Germeteх® PPEs

One of options application of GERMETEХ® ACOUSTICS materials



GERMETEX® ACOUSTICS range of materials –
soundproof membrane for walls, partitions, and floors and ceilings.
Installation between layers of sheet building material
(OSB, laminate, plywood, and drywall).
Provides improvement in Rw EN 140-3 performance.

VALUE OF OFFER: adaptation of GERMETEX® products to Customer’s specifications: physical and chemical parameters, technological, and overall dimensions.



Germeteх® PPEs

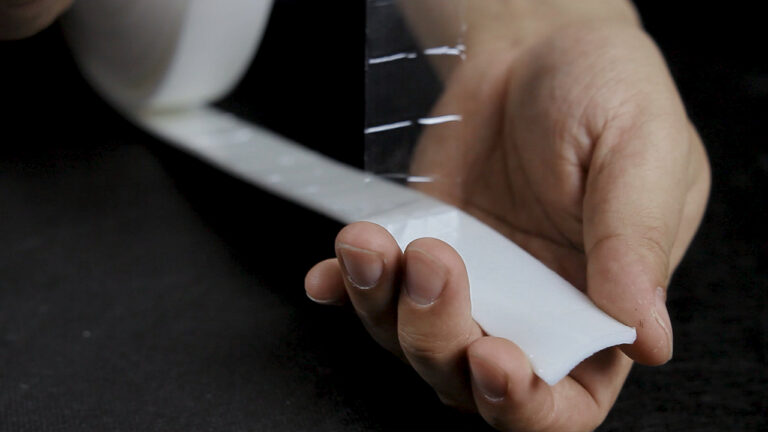

PPEs — designed for noise protection of metal frames, partitions, facings and ceilings.
It is glued to guide profiles of ceilings and floors, as well as to rack profiles of wall claddings.



SPECIFICATIONS:
Minimum installation temperature, °С: – 15.
Operating temperature: from – 60 °С to + 90 °С.
Width of tapes: from 10 mm to 900 mm. Seal thickness: from 2 mm to 10 mm.
Sealant thickness: 0.6 mm to 3 mm.
Length of tapes, m: depending on thickness of insulation.

PACKAGING: (Typical Dimensions)

PPE S

Tape Width,
mm
Length per Roll,
m
Quantity per Coil,
lm
Palletized,
Coils
30
100
25
25
375
125
18
18



1
1
1
1
1
1
1
1
1
1
1
